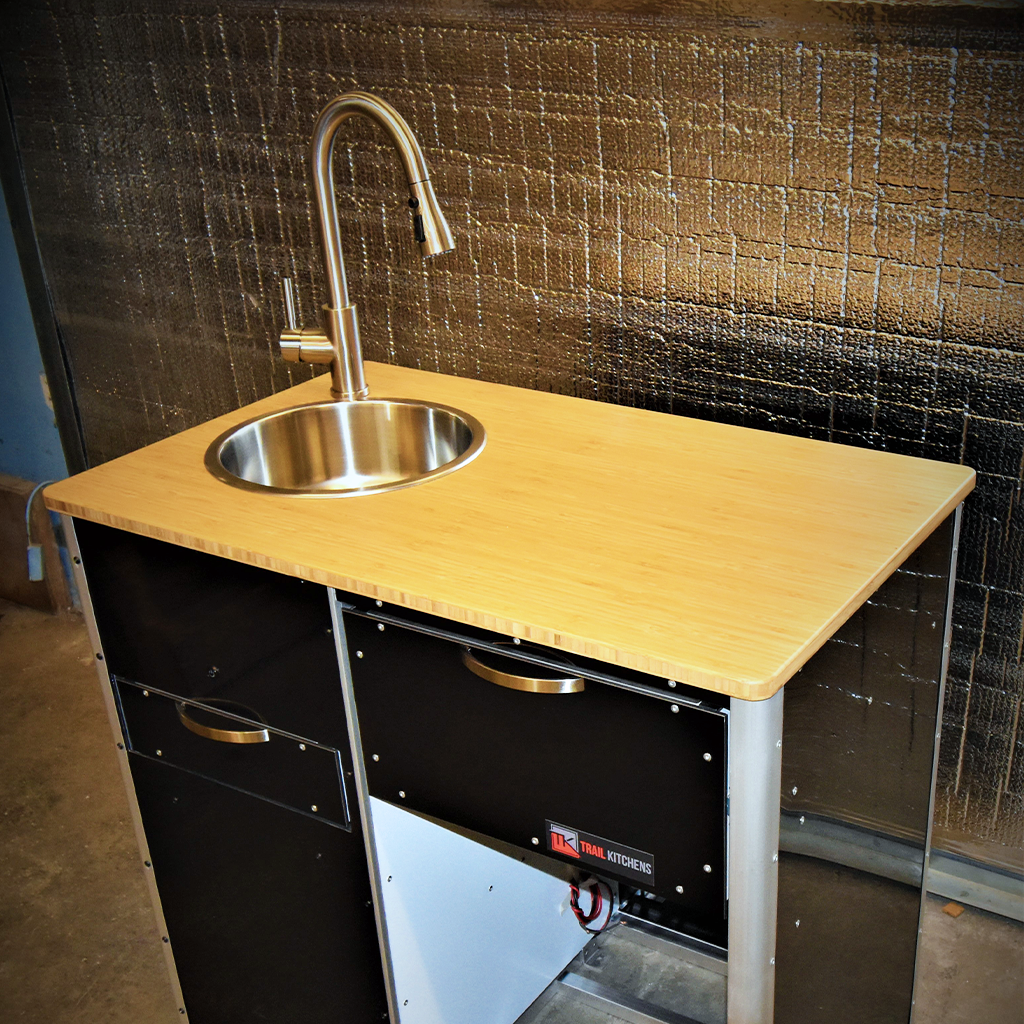

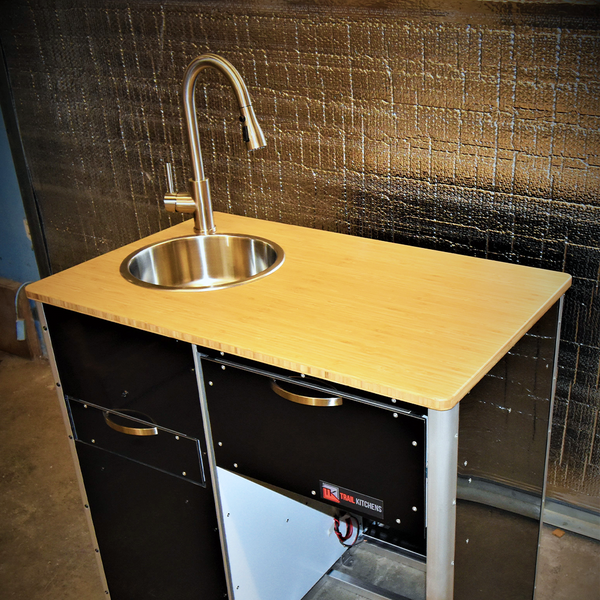

Kitchen Pod

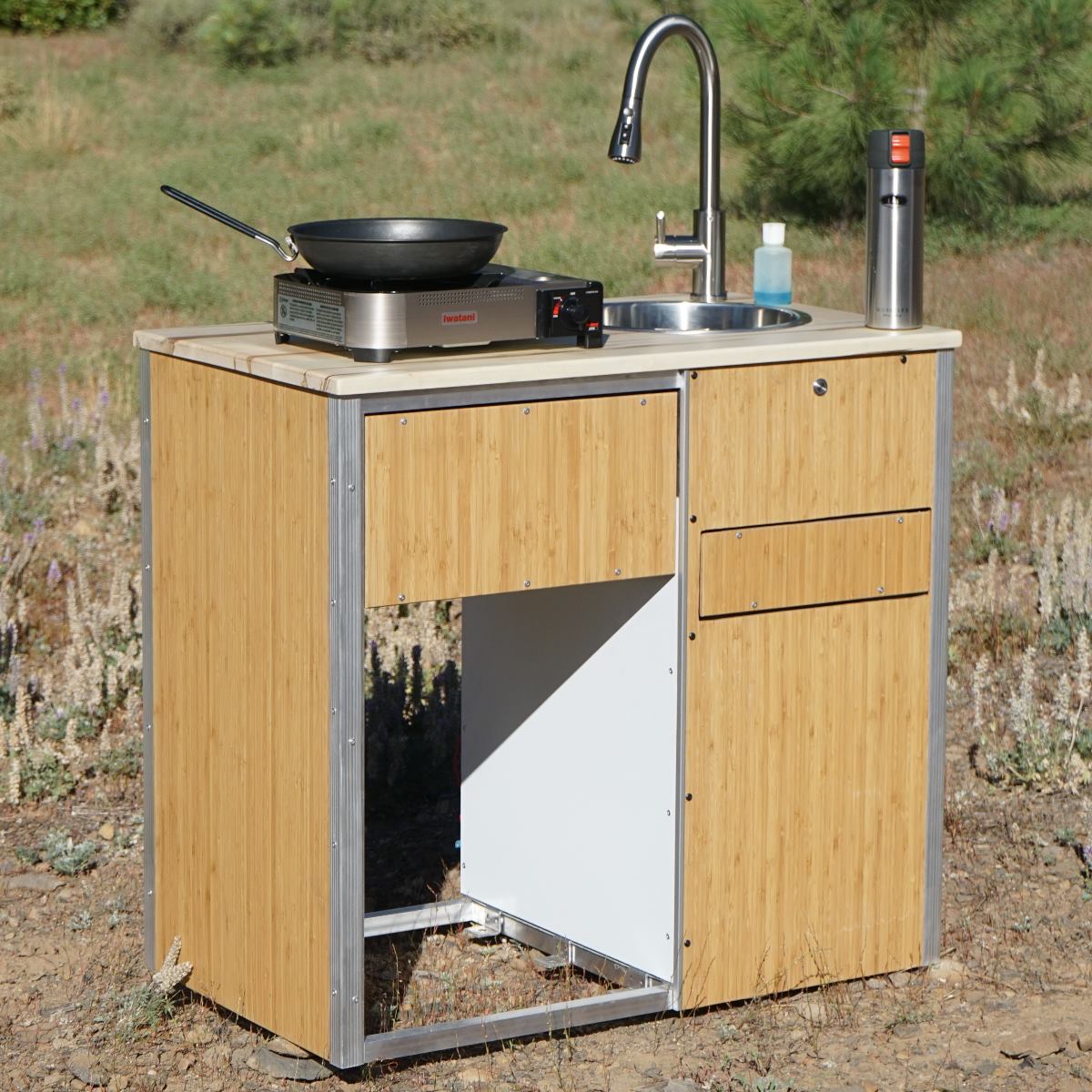

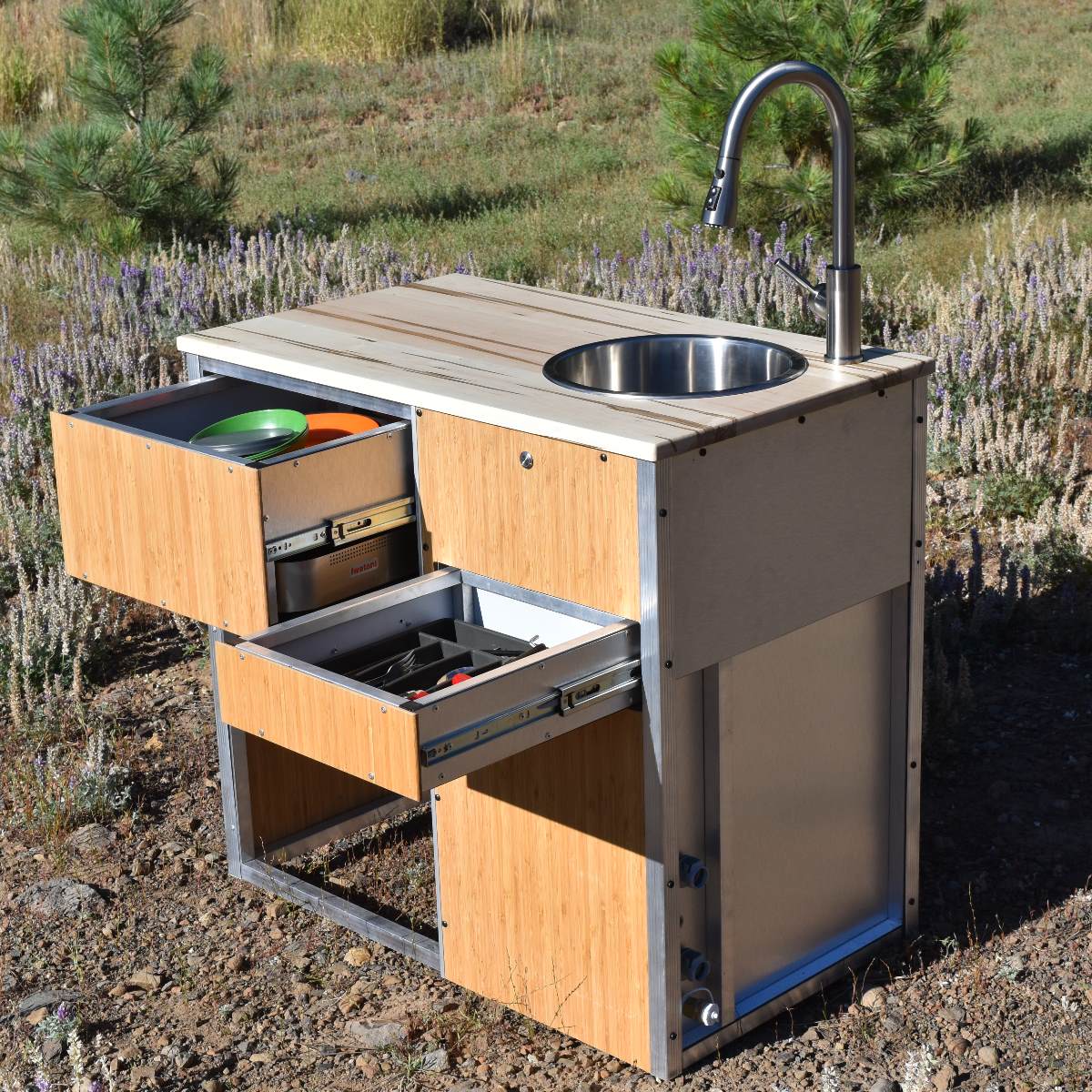

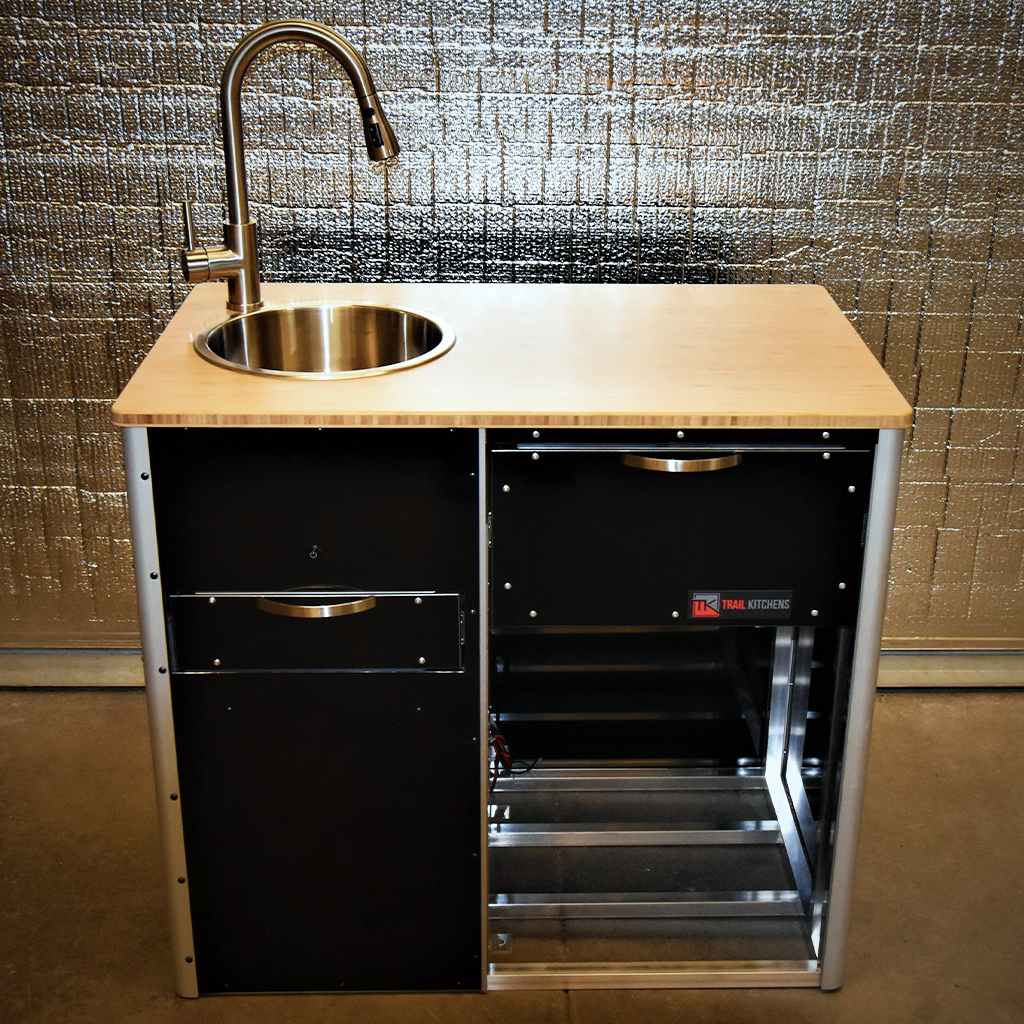

The Kitchen Pod is our most compact galley unit designed for space saving efficiency. Featuring a dedicated space for a compatible fridge, two drawers, self contained pump and filtration, fresh and gray water tanks, stainless sink and faucet, and comes complete with a gear package for all your cook and dinnerware.
Built with our Space Frame riveted aluminum construction.
Easy Bolt On Installation

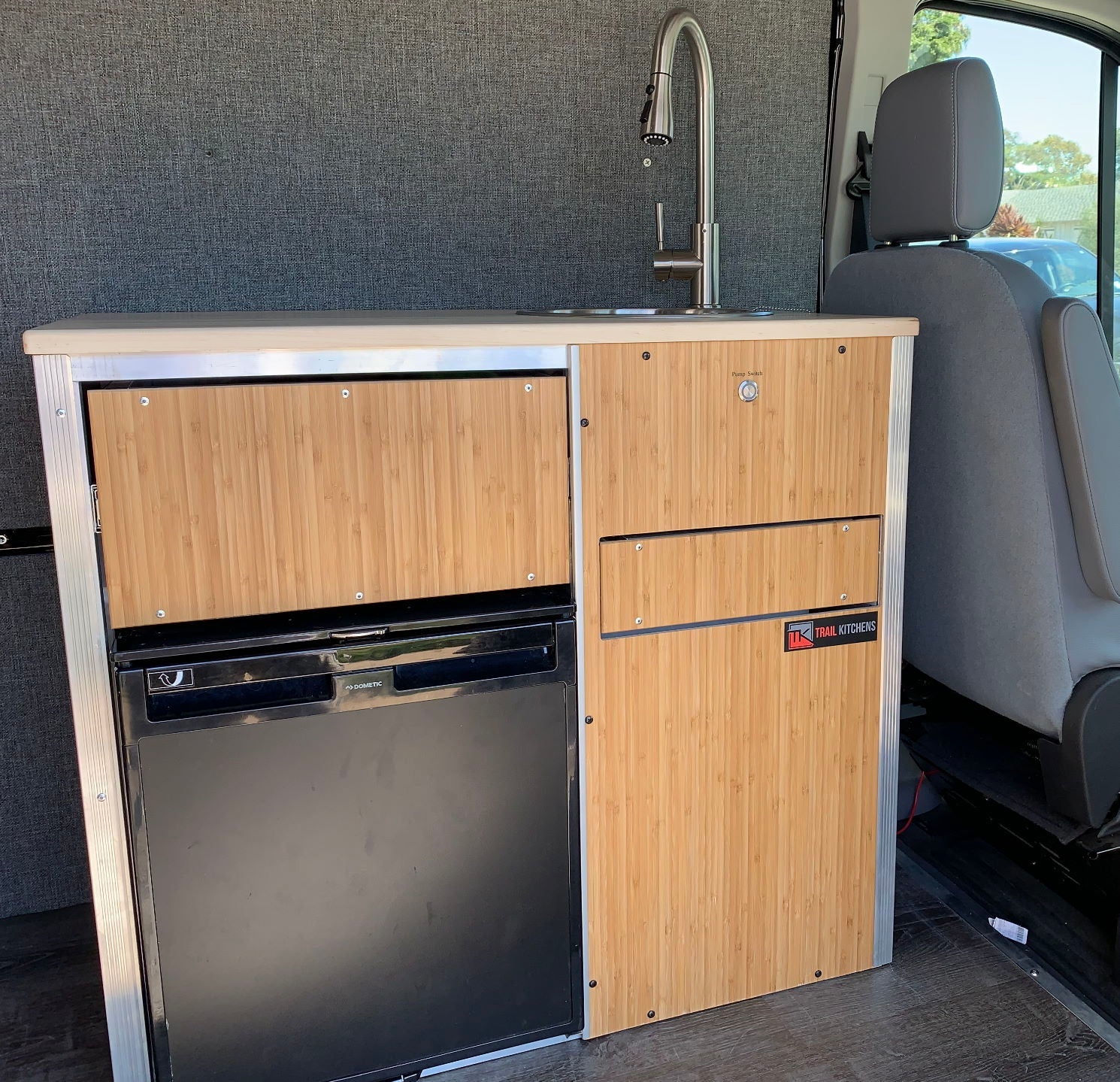

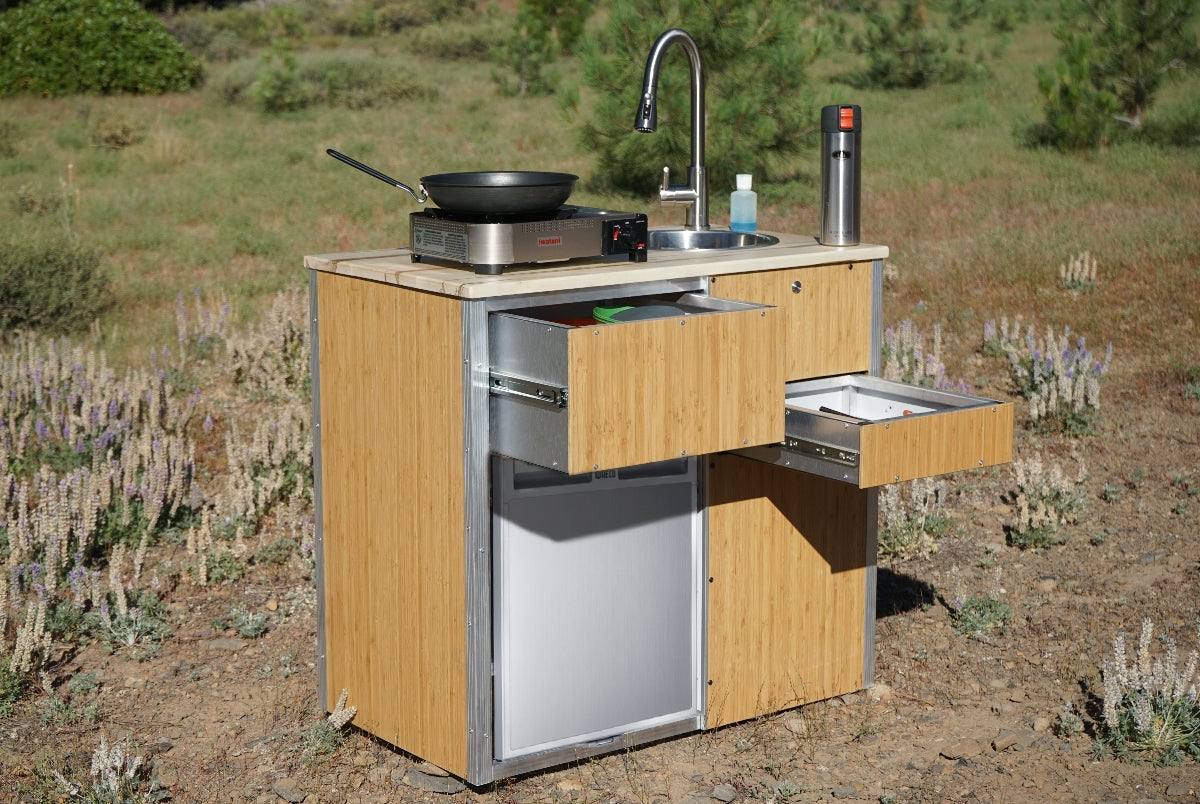

Dedicated space for compatible fridges (not included) : (Dometic CRX 65T ; DC Only ; Black) // (Dometic CRX 1065S ; AC/DC ; Stainless)

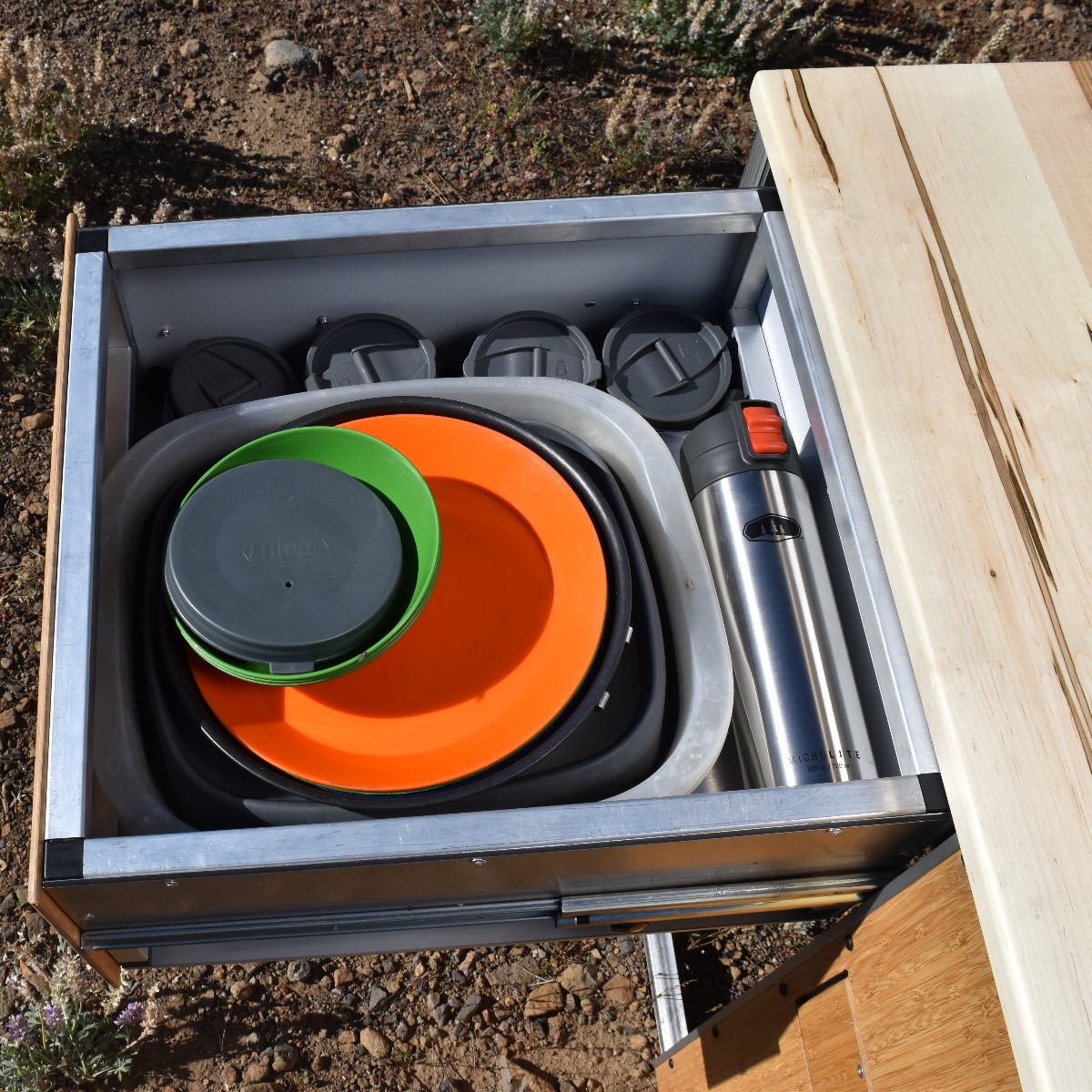

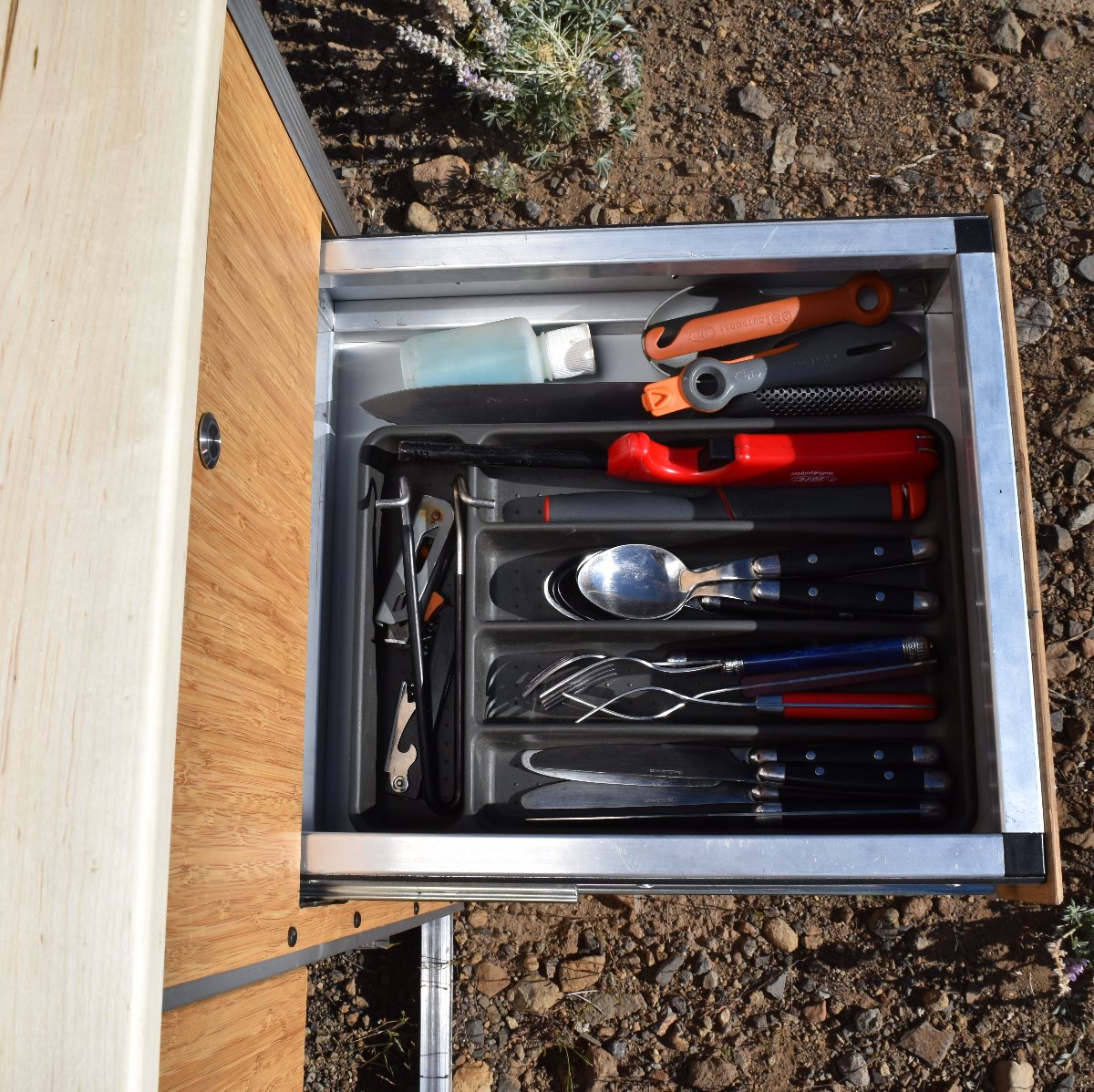

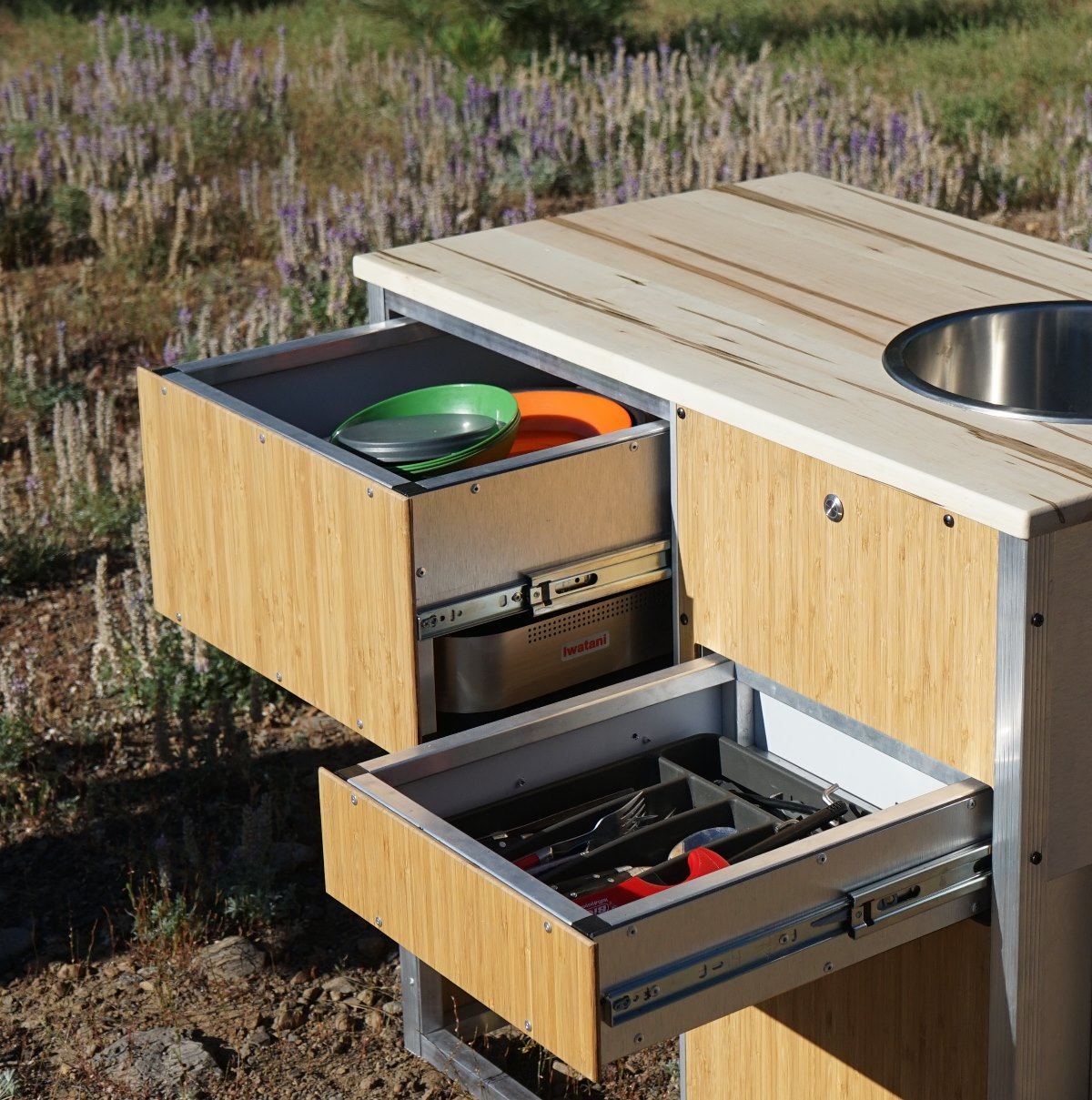

Two drawers for optimized storage for included Gear Package.

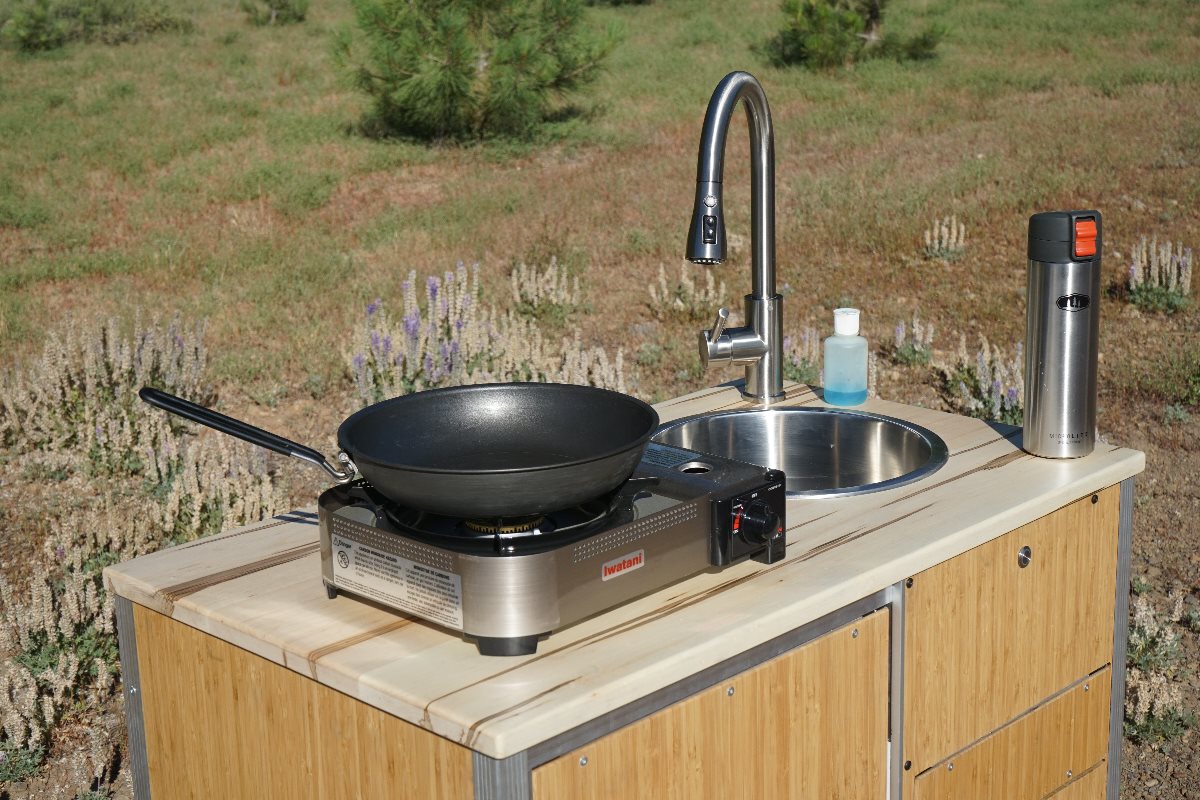

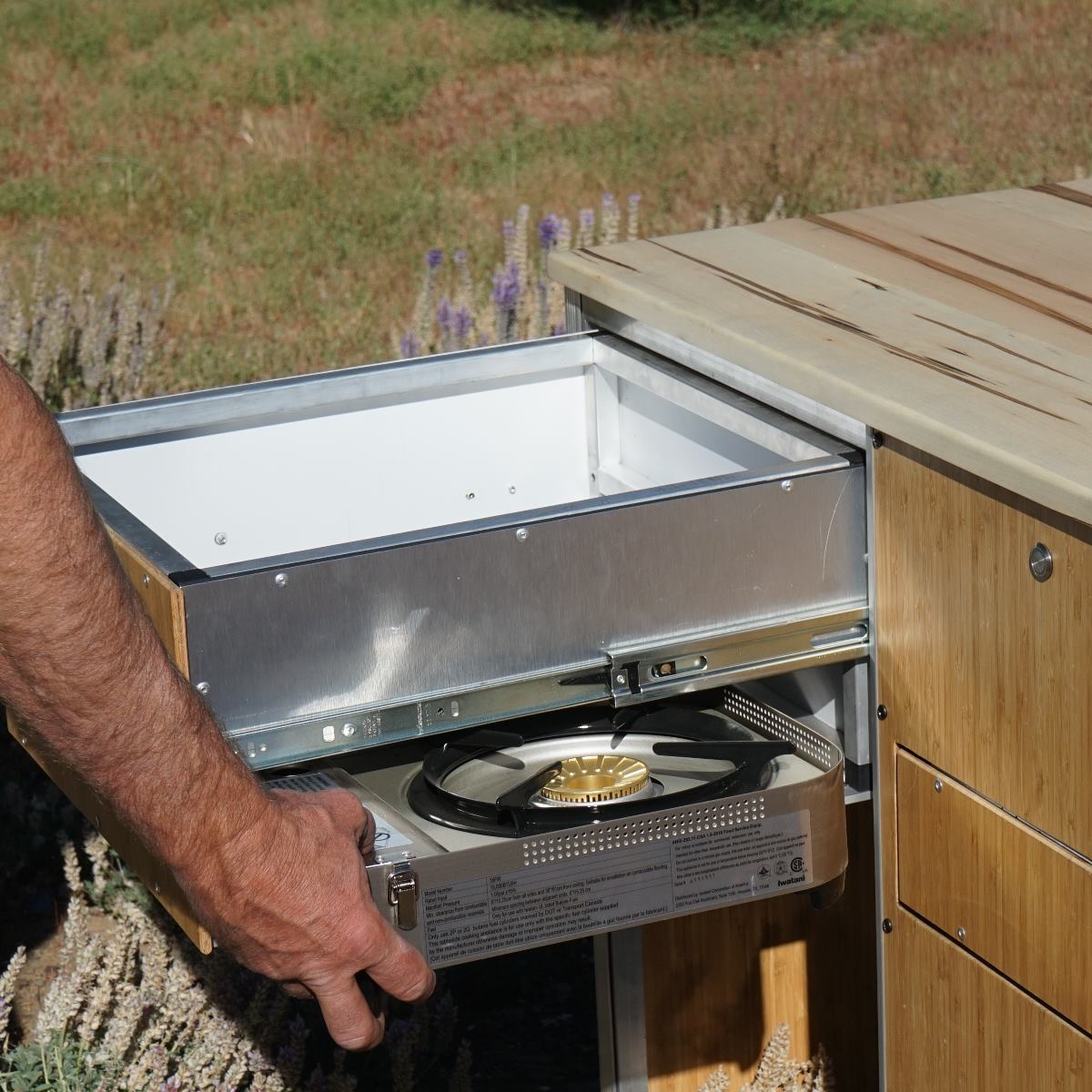

- Single Burner Stove
- 1 Bugaboo fry pan w/folding handle and non-stick surface (10")
- 4 Infinity Backpacking Mugs (insulated, color coded)
- 4 Cascadian Bowls (6.4" x 1.7", color coded)
- 4 Cascadian Plates (9.5", color coded)
- 4 Pioneer Forks, Knives & Tablespoons
- 1 Collapsible Java Drip
- 6 Chopping Mats
- 2 Collapsible Dish Washing Tubs
- 1 Pivot Spatula, 1 Pivot Spoon & 1 Pack Tongs

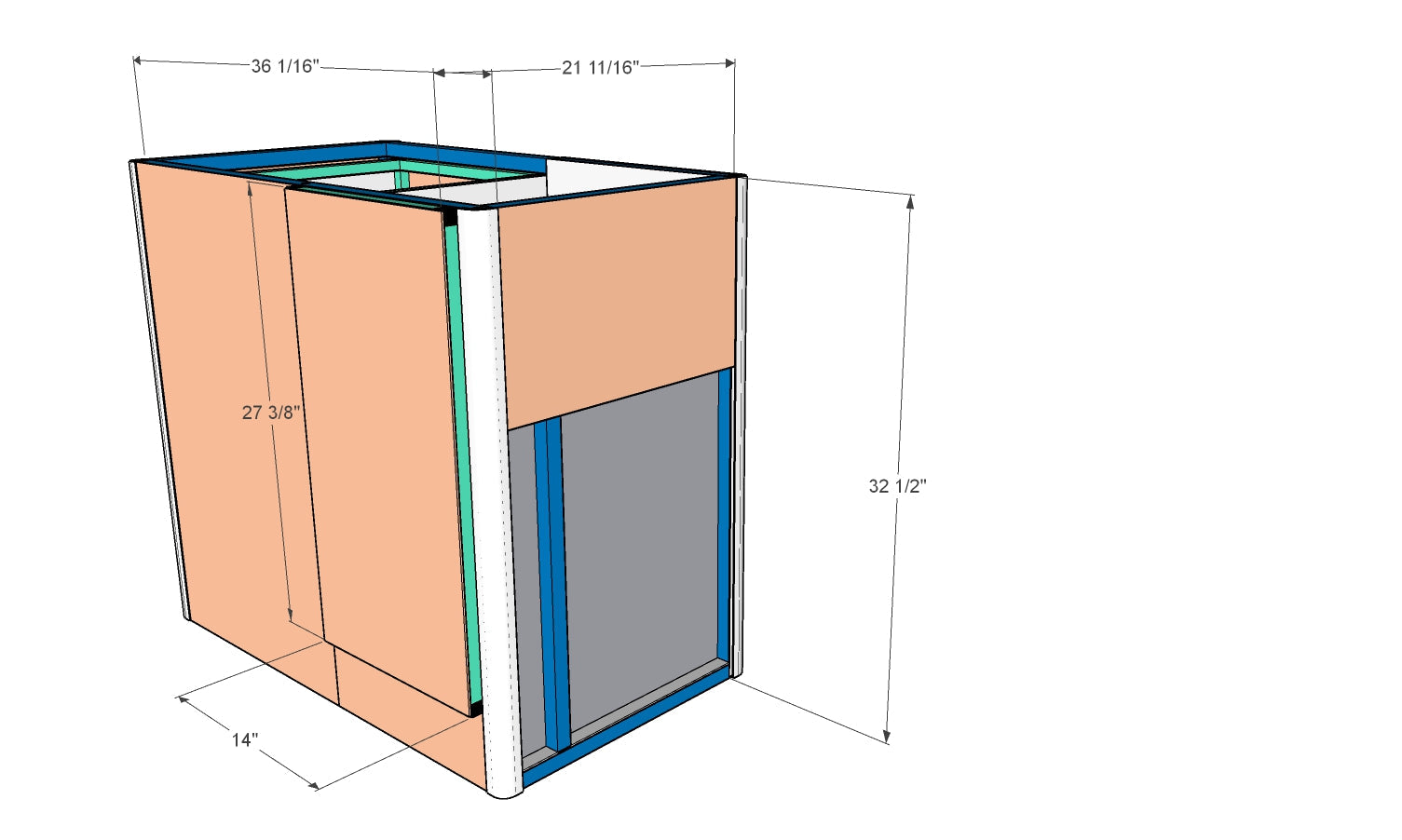

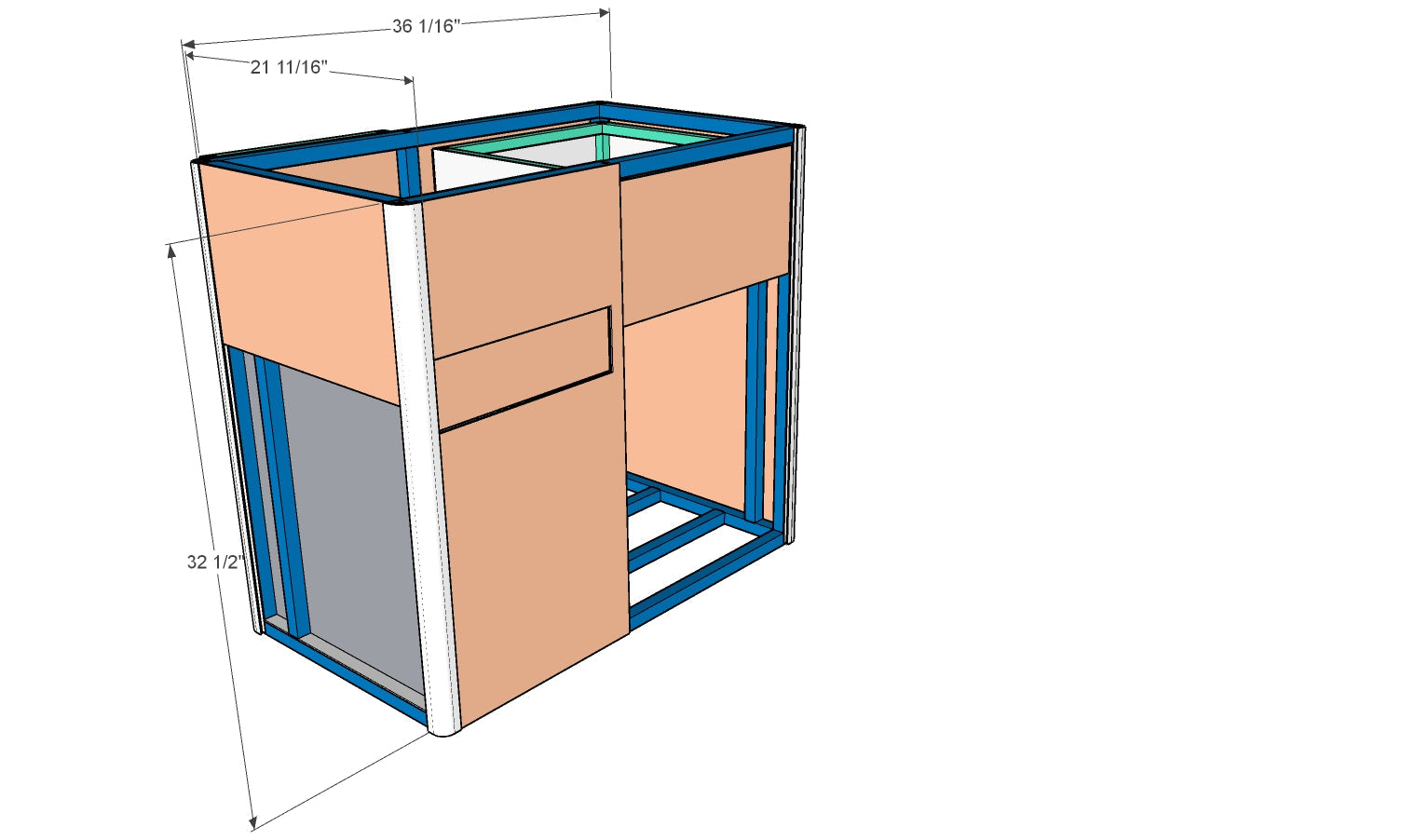

Overall Dimensions 37"W x 20.5"D x 33"T
Dry weight with all equipment - 115 lbs
Shipping weight on standard pallet - 155 lbs

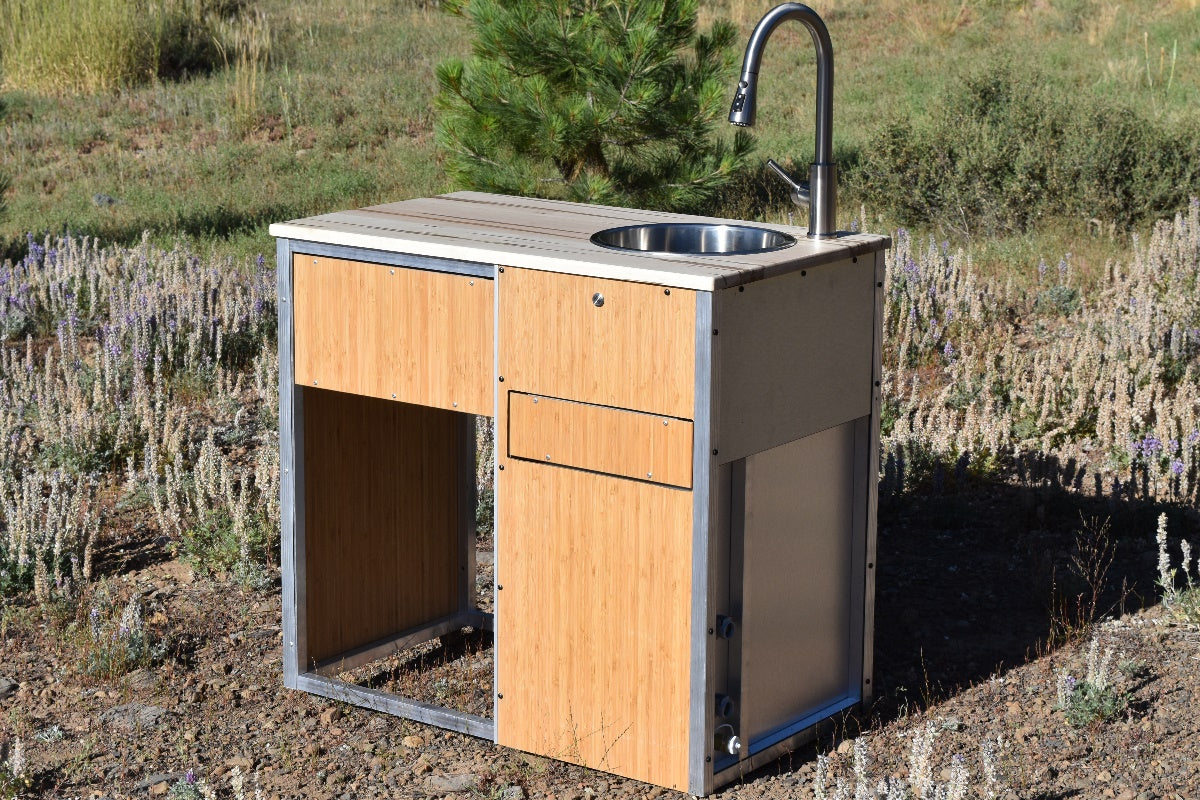

**You can order the Kitchen Pod to be compatible with a Dometic CRX fridge/freezer or with a storage cabinet in that same space.**
fridge not included - confirm when ordering your fridge that it is 17.6" wide
Features include:

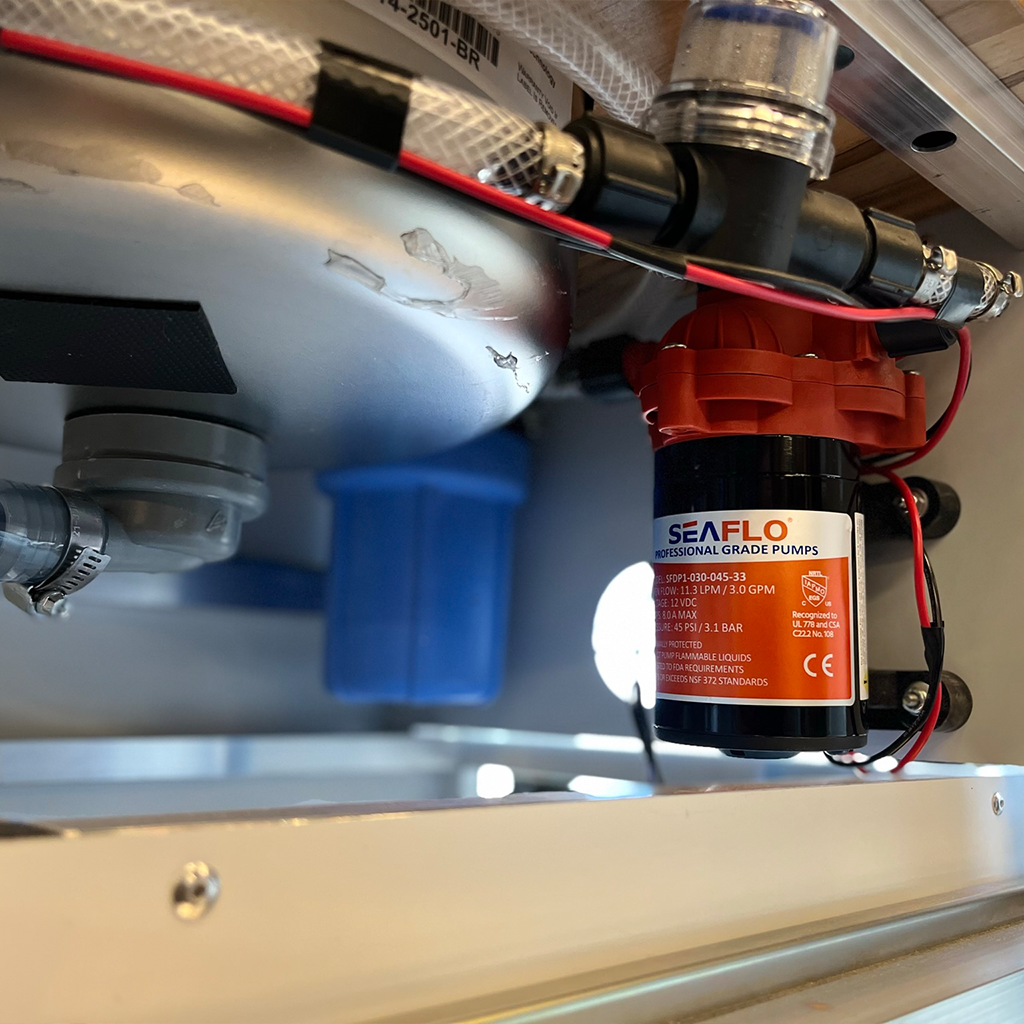

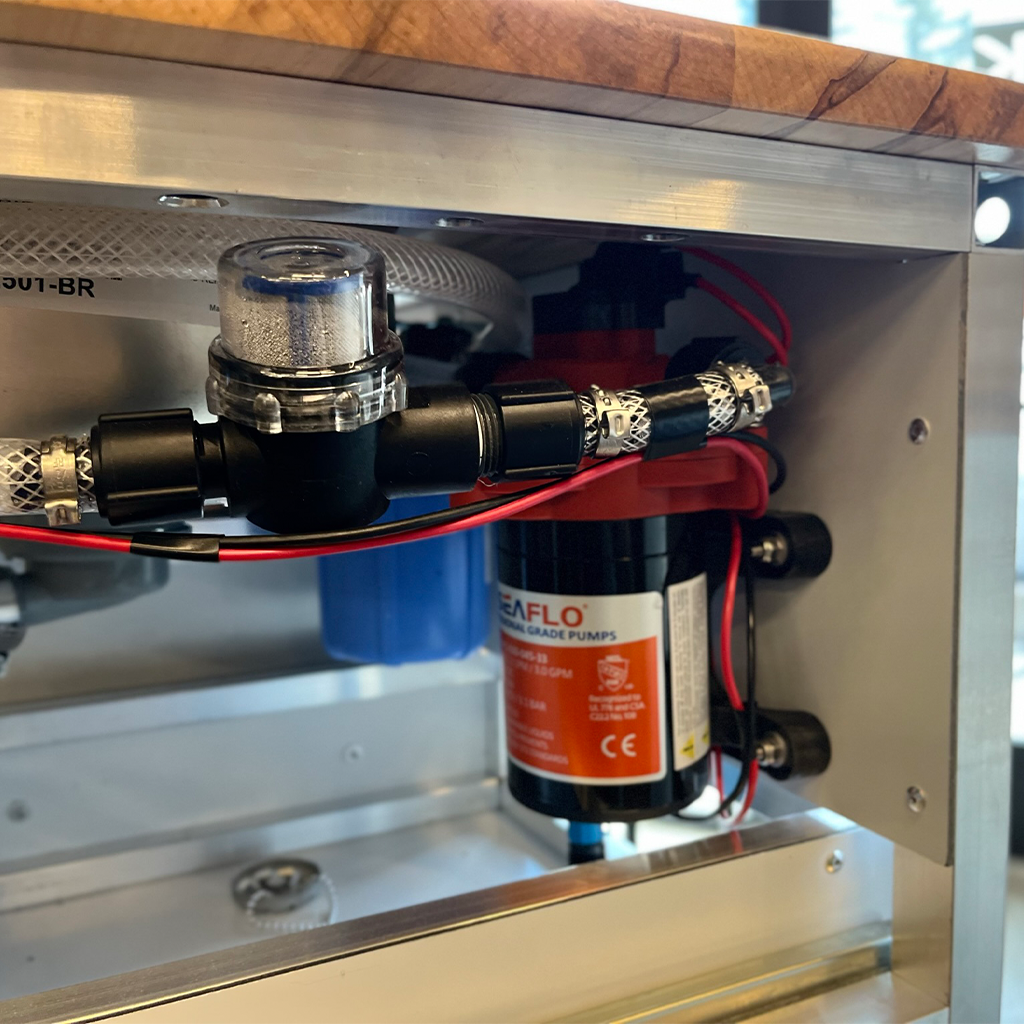

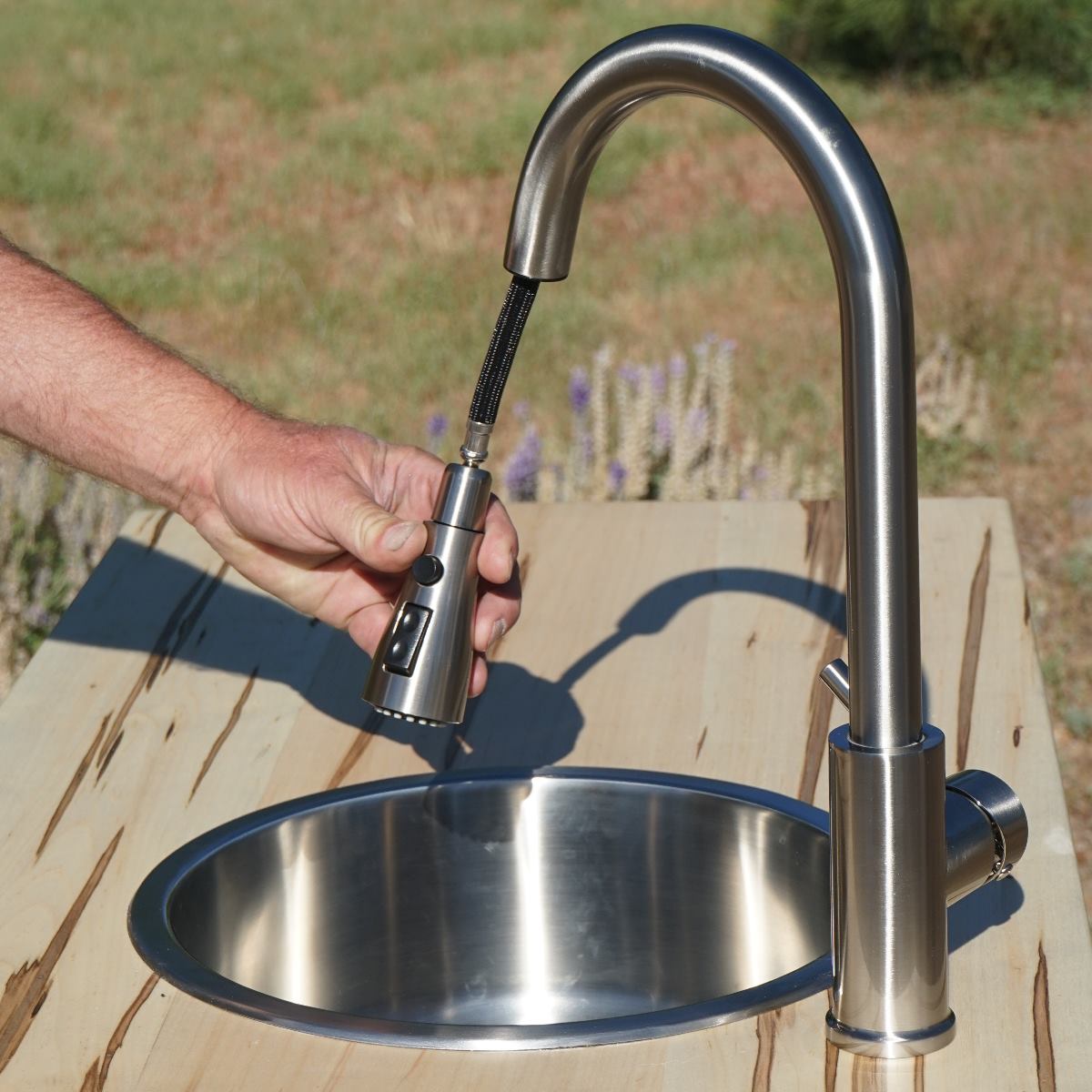

- Marine grade water system with 50 psi, 3.5 GPM pump, carbon block filter, 12 inch diameter Stainless steel sink and an arc faucet with pull out sprayer

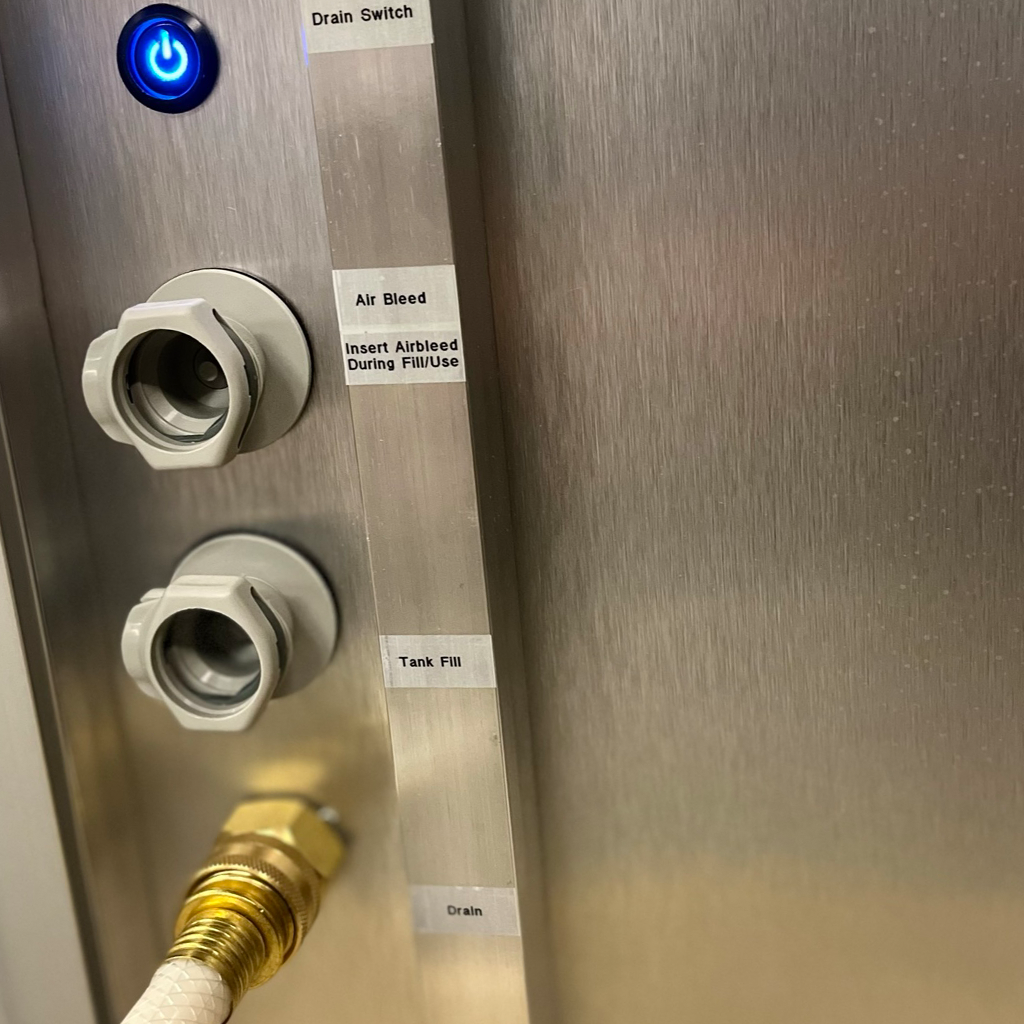

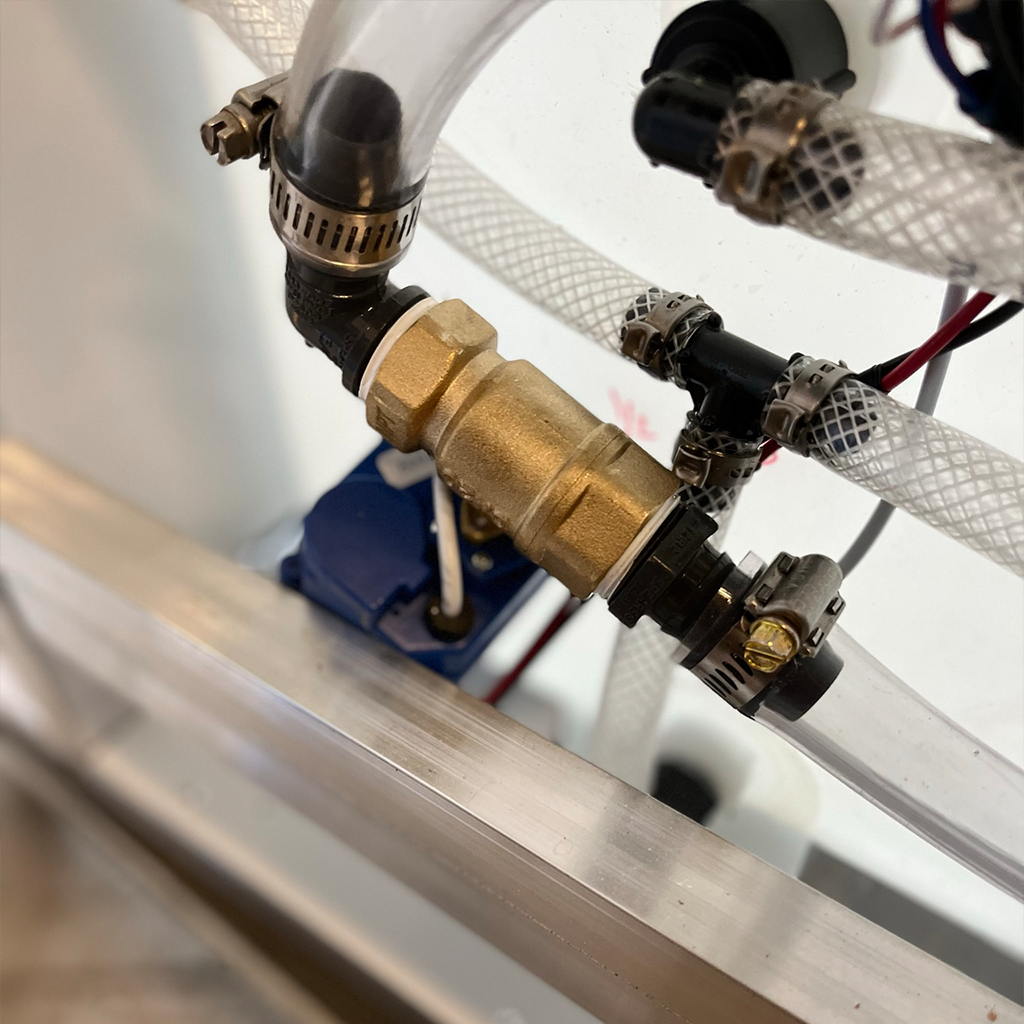

- Rigid polyethylene 9 gallon fresh water and 6 gallon grey water tanks are located under the sink and the grey water tank has a remotely actuated valve for easy disposal of the grey water

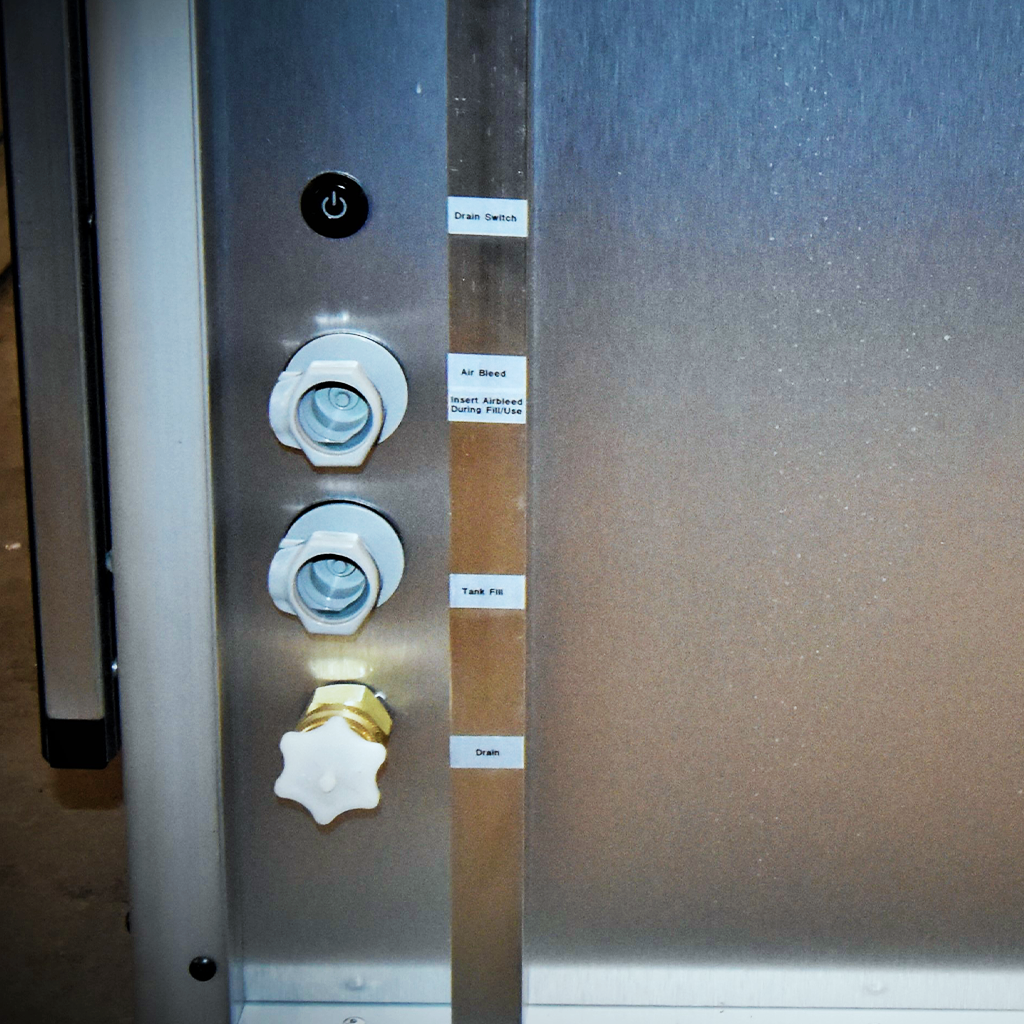

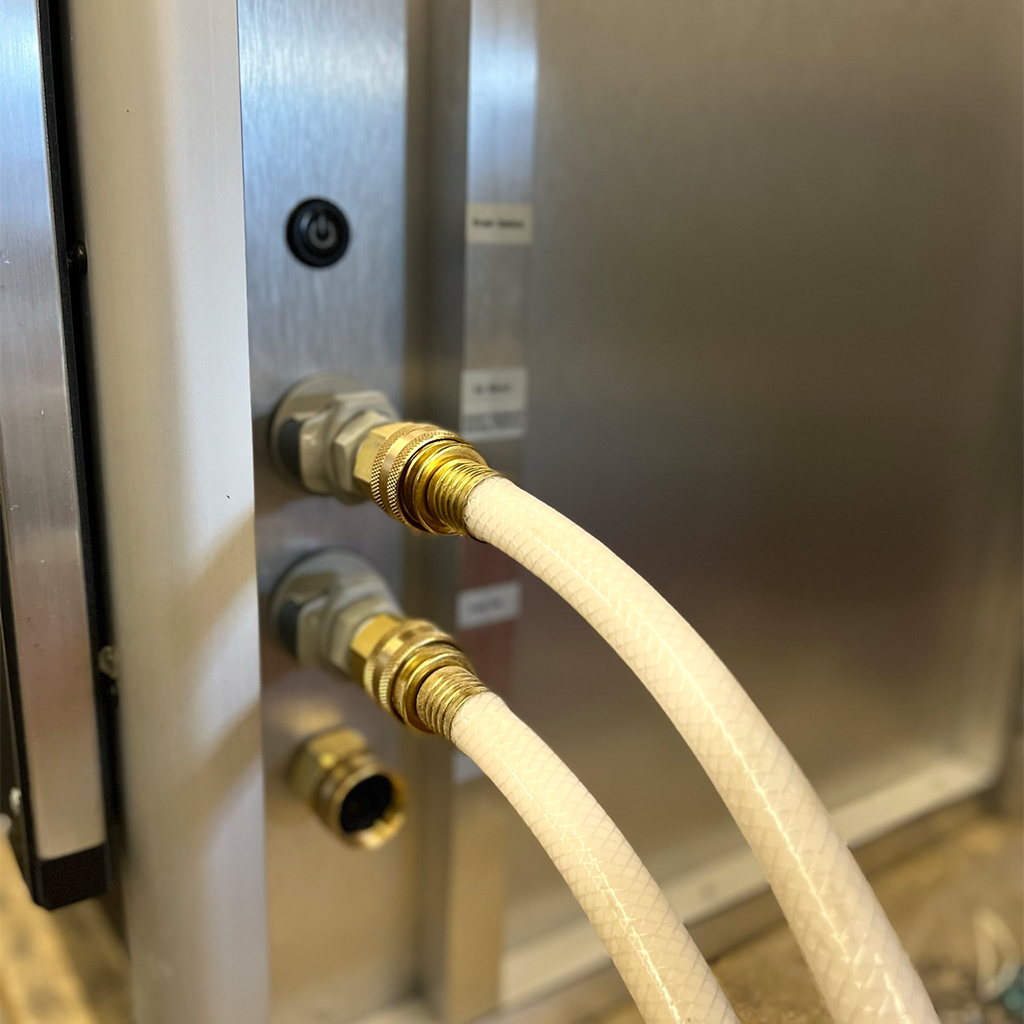

- Quick release fitments for filling the fresh water
- Pump wiring is complete- simply connect to your 12V system. A standard blade style fuse and switches for the water pump and grey water evacuation valve are included
- Wormy maple counter top is standard. Alternate counter top materials to match your interior are possible (contact TK customer service for information and pricing)
- Proprietary aluminum Space Frame construction - Light ,strong, and squeak free. The tubular space frame construction is incredibly rigid and the units mount to the floor only, ensuring a rattle and squeak free interior

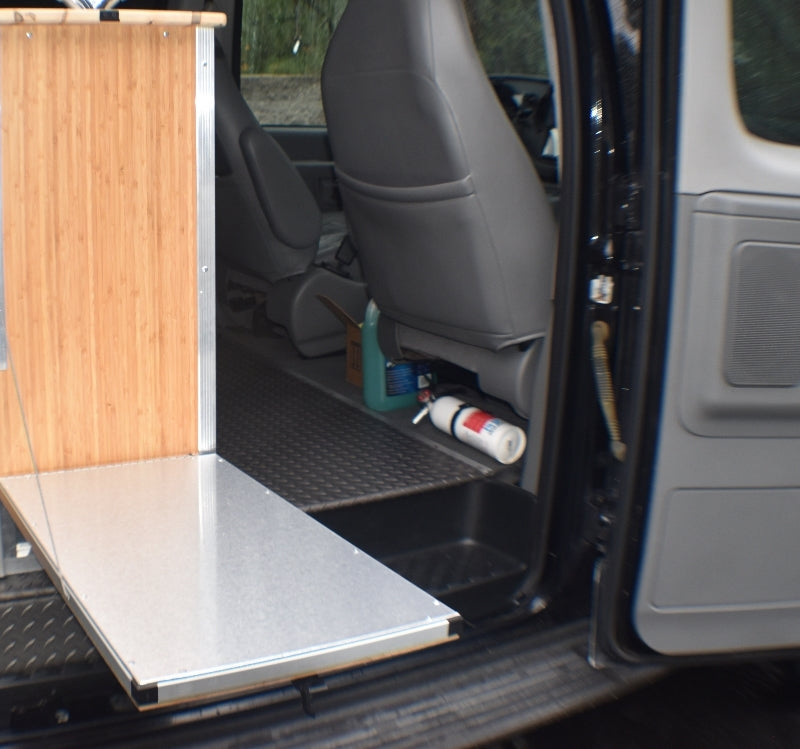

- Passenger side configuration includes a flip down table for use outside the van - Add $100.00
- Note that all modular Van products are built to order and all sales are final
We offer custom cargo slides to easily access and stow cargo in your truck or van. Whether you have a commercial vehicle or an adventure rig these slides make access to tools and gear much more convenient and ergonomic. Fantastic solution for accessing heavy and bulky gear and tools.
Dual Slide Decks Available
Dual platform slides available with custom deck widths. Call or email for pricing and details
Simple Mounting
Mounting hardware is included and you drill four holes through the aluminum mounting tubes located under the slide deck and through the floor of your vehicle. Alternatively, Plus Nuts can be inserted into the steel floor pan or truck bed for quicker removal and remounting.
